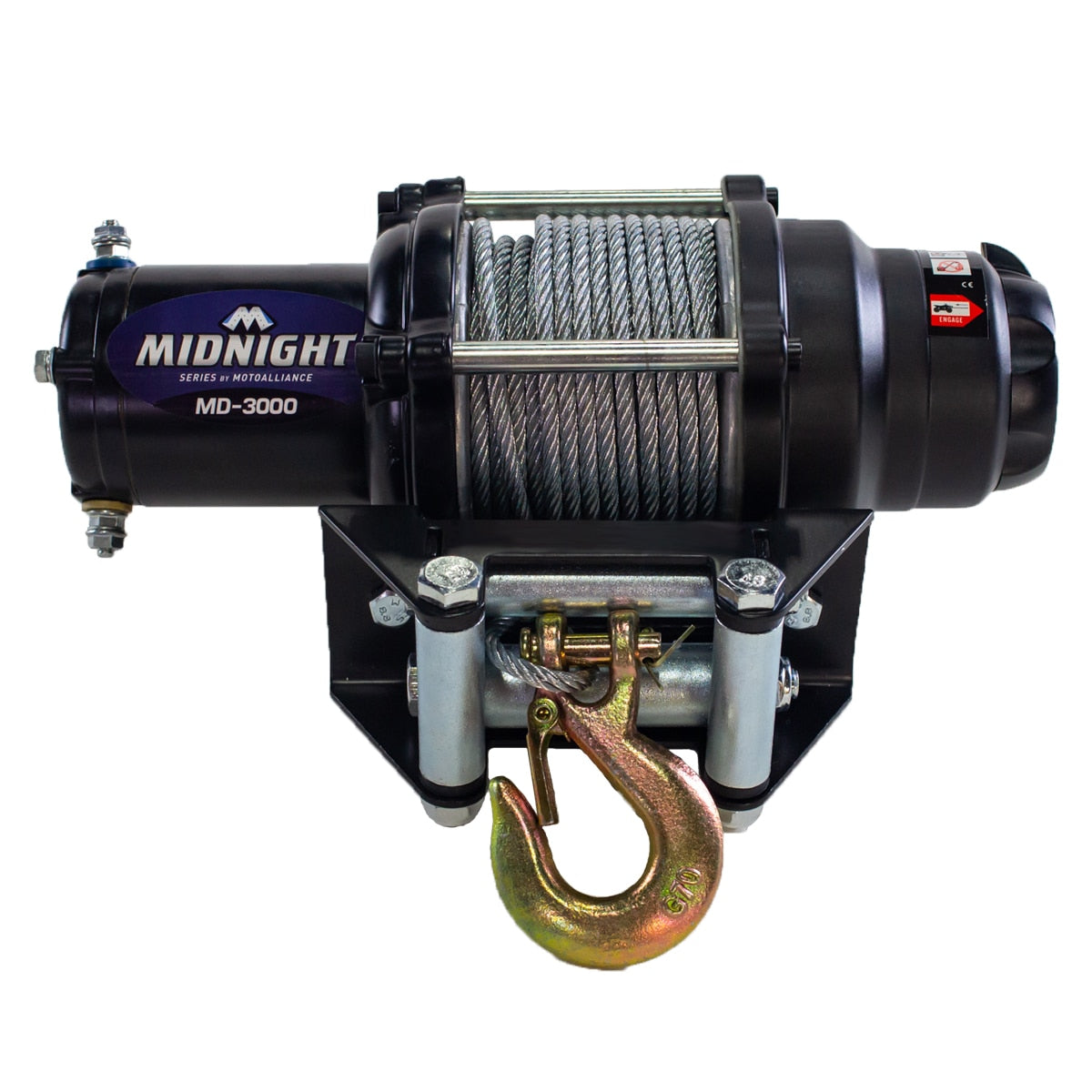

VIPER MIDNIGHT Series Winches are a top choice for ATV/UTV riders who love getting into -- and out of -- the deep stuff.
With pulling power of 3,000lb, as well as numerous features including an automatic brake, fully sealed internal componentry, all steel gears, a waterproof handlebar switch, the VIPER Midnight Series winches are tough and dependable when it comes to taking on the elements.
Motoalliance has been designing and developing VIPER winches since 2006, and the VIPER MIDNIGHT series was created as a reliable option to compete against the low-cost imported Chinese winches while providing the support and expertise only a true USA powersports' company can provide.
Features
·Metal gears
·Mechanical load holding and dynamic brake
·High-quality water resistant seals
·50' of steel or synthetic cable
·One-year warranty against all manufacturing defects
Kit Contents
·Steel or synthetic cable
·Roller or hawse fairlead based on the type of cable
·Contactor/Solenoid & all necessary wiring
·Rocker Handlebar Switch
·LED Dash Switch (Optional upgrade)
·Clevis Hook
·Installation Hardware and Instructions
Specs
·50' of steel or synthetic cable
·VIPER MIDNIGHT 3,000lb dimensions: 12.25 inch (L) x 4.5 inch (W) x 4.5 inch (H)
·12V DC, permanent magnet motor
·Mechanical load holding and dynamic brake
·Steel planetary gears
·Wiring - [8 gauge (English) - 84/.3 (Metric)]
·Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123. 83mm)
Optional Extended Wiring Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the ATV/UTV and are especially useful for 4-seat models. Note that both ends of cables are eyelets
