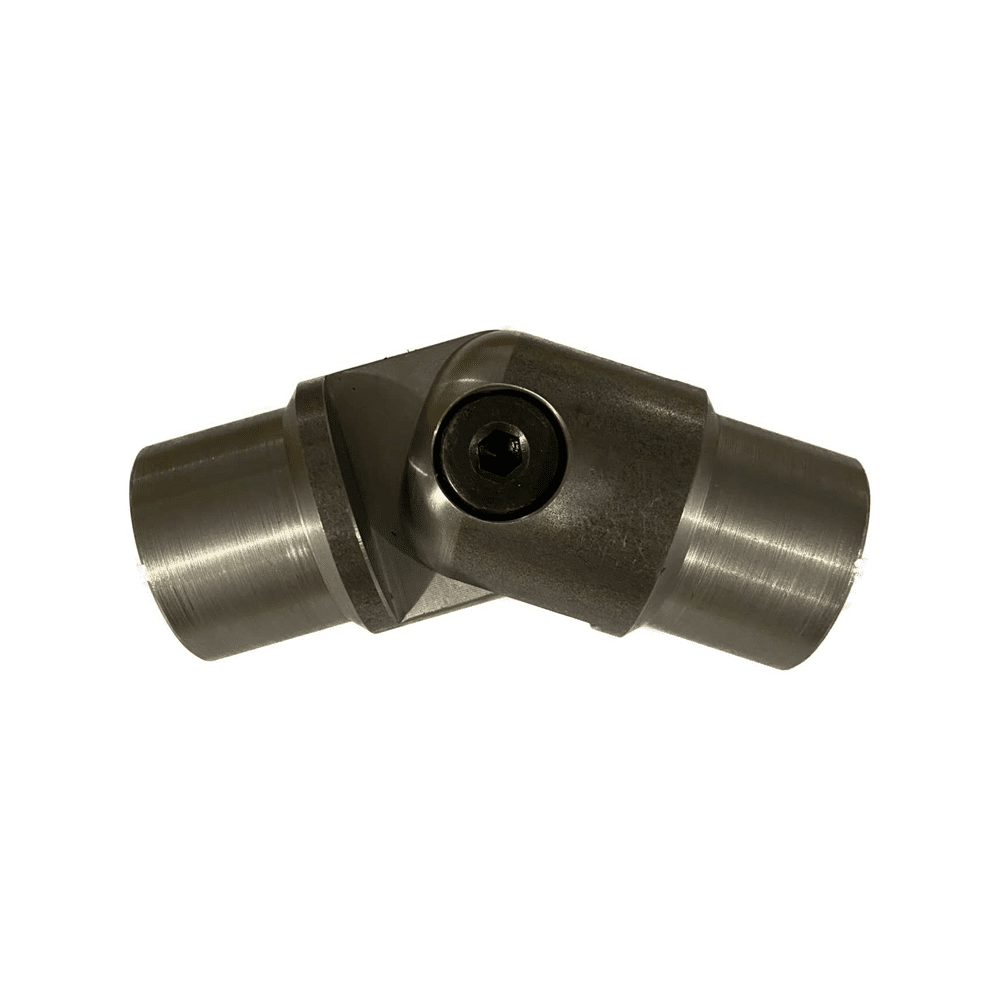

Long Tube Hinge / SXS Doors

• American Made
• Perfect for doors on your SXS
• Works good for tire carriers
• Uses 1/2″ shoulder bolt
• Rotates 180 degrees
• Nice weld chamfer
• Rugged design
• Fits 1.75″ dia tubing with a .120″ wall

Click for Dimensions

200315

Our Tubing Hinges are a great way to make quality doors, tire carriers, or anything that swings open. We CNC machine our tubing hinges from 1018 steel and use a 1/2" diameter shoulder bolt as the pivot pin.  The shoulder bolt is hardened for great wear resistance.  Each tube hinge comes with a nice weld chamfer to fit inside your tubing for the perfect weld.  These have a long neck on them that inserts in the tube 1.00" making them able to be plug welded.

You may also be interested in our Tubing Disconnect to complete your other tubing projects.
