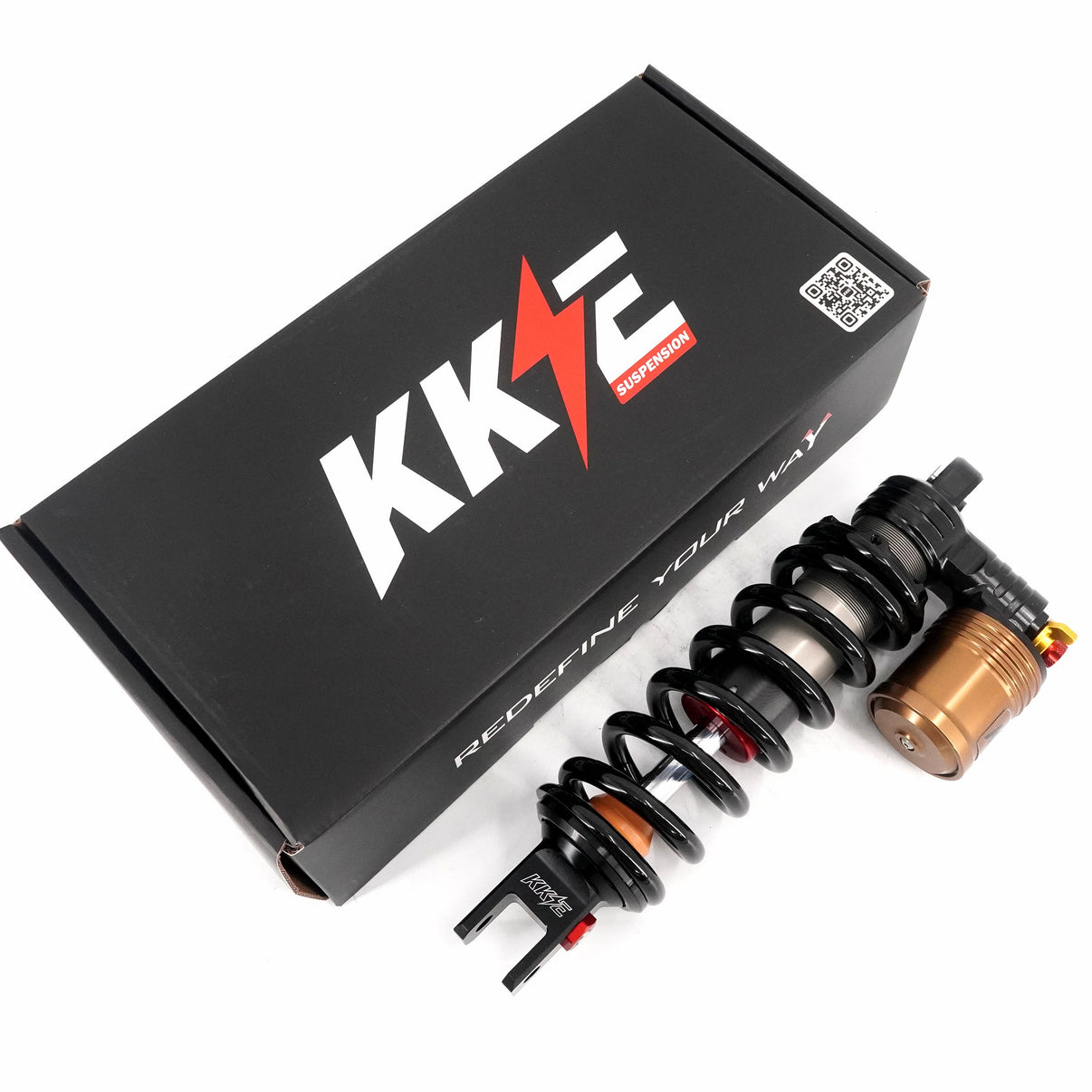

KKE Upgraded Rear Suspension Shock Spring Absorber for SurRon Ultra Bee Electric Dirt Bike in Different Color Available

Specifications:

• Total Length: 320mm
• Top Mounting Size: 10x24
• Bottom Fork: 10x24.2
• Upper Mount: AL6061-T6, matte silver/black, full CNC machining
• Lock Nut: AL6061-T6, matte silver/black, full CNC machining
• Spring Guide Bushing: POM, black, oil cylinder protection
• Lower Fork: AL6061-T6, matte silver/black, full CNC machining
• Compression High-speed Adjustment: AL6061-T6, gold, full CNC precision machining
• Compression Low-speed Adjustment: AL6061-T6, red, full CNC precision machining
• Air Chamber: AL6061-T6, matte silver/champagne gold, precision-drawn tube
• Oil Chamber: AL7075-T6, raw aluminum, precision machining (honing process)
• Piston Rod: 40Cr, hard chrome-plated finish, nickel plating first and then chrome plating on the surface
• Shock Spring: 55CrSi-C-GB, yellow/white/black option, high-performance left-hand Spring
• Shock Pad: Polyurethane, yellow, automotive high-performance

Recommendation for Riders:

• KKE Rear Shock with 500lbs spring Fit 65–85kg Riders Weight

Note: handles 90% of road conditions via click adjustment

Fitment:

• For Surron Ultra Bee 2023-2025

Package Included:

• Rear shock absorber assembled with 500Ibs Spring 1set
• KKE premium sticker 1pcs
• KKE special-design keychain 2pcs

Color Option:

• Black shock spring with Bronze air chamber

• Gold shock spring with Silver air chamber
• Gold shock spring with Bronze air chamber

Core Function Introduction:

Rebound Adjustment: (15±2 clicks)
Low-Pressure Adjustment: (18±3 clicks) – Adjusts compression damping force
High-Pressure Adjustment: (18±3 clicks) – Increases high-speed damping (enhances support)
Preload Adjustment: (0–10mm) – Loosen/tighten the locking screw during adjustment
