The FlatLink XTV allows replacement of the conventional winch hook with a safer and stronger shackle/D-Ring. Winch hooks can cut and fray recovery straps and often allow strap ends to...

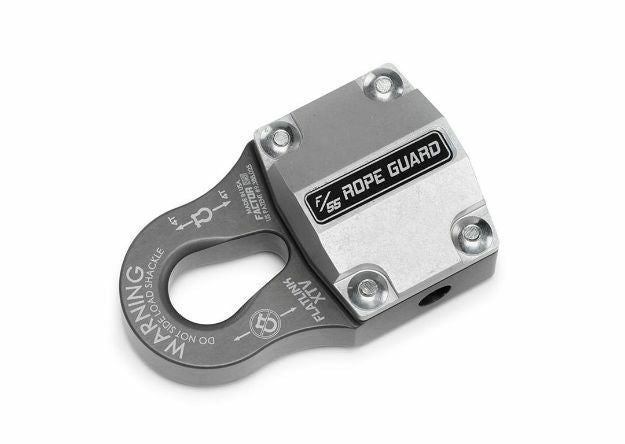

The FlatLink XTV allows replacement of the conventional winch hook with a safer and stronger shackle/D-Ring. Winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose/tight cycles of a winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The FlatLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches. The cable eye is retained in the FlatLink XTV by a 7/16 inch diameter titanium double shear pin and internal snap ring. It is easily installed in minutes. The EPDM Rubber Guards protects alloy fairleads and is securely attached to the FlatLink XTV with 4 barbed tips. The FlatLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard ? * 5/8 inch shackles. MADE IN THE USA, the FlatLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized/powder coated in 5 different colors. The FlatLink XTV has a max load rating of 8000 pounds and an ultimate failure of 28,000+ pounds.
Upgrade your winching setup with the FACTOR 55 FlatLink XTV Rope Guard, an innovative solution designed to replace conventional winch hooks. This robust system utilizes a secure shackle and D-ring to prevent damage to recovery straps, which can occur with standard winch hooks. Unlike traditional options, the FlatLink XTV features a screw pin shackle that keeps strap loops securely attached, minimizing the risk of accidental disconnection during operation.
Constructed from high-quality 6000 series billet aluminum and 6Al-4V titanium, the FlatLink XTV is both lightweight and incredibly strong, boasting a maximum load rating of 8000 pounds and an ultimate failure threshold of over 28,000 pounds. The installation is quick and easy, requiring only minutes to set up, making it an ideal choice for off-road enthusiasts and recovery professionals alike. With five anodized/powder-coated color options, you can customize your setup while ensuring durability and performance.
Features: * Innovative shackle and D-ring design: Replaces conventional winch hooks for enhanced safety.
* Screw pin shackle: Prevents strap loops from escaping during winching cycles.
* Quick installation: Easily set up in minutes without the need for splicing.
* Compatible with steel cables and synthetic ropes: Suitable for use with ropes up to 5/16 inches.
* High load capacity: Rated for a maximum load of 8000 pounds with an ultimate failure threshold of 28,000+ pounds.
* Durable construction: Made from 6000 series billet aluminum and 6Al-4V titanium.
* Color options: Available in five anodized/powder-coated finishes to match your style.
* EPDM Rubber Guards: Protects alloy fairleads and securely attached with barbed tips.
