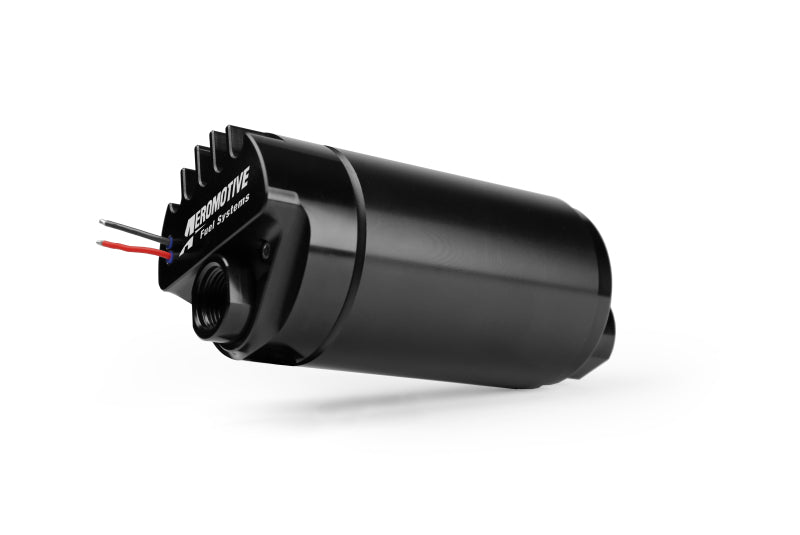

Aeromotive Brushless Pro+-Series Fuel Pump External In-Line

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
Fuel Pump, In-line, Brushless, Spur, 5.0 (Includes T-Bolt Clamps For Mounting) .
Fuel Pump, In-Line, Brushless, Spur, Pro+

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.


• Fuel injected engines: METHANOL
  up to 1,190 FWHP – naturally aspirated
  up to 910 FWHP – forced air induction


• Carbureted engines: METHANOL
  Up to 1,260 FWHP – naturally aspirated
  Up to 945 FWHP – forced air induction


• Fuel injected engines: GAS
  up to 3400 FWHP – naturally aspirated
  up to 2600 FWHP – forced air induction


• Fuel injected engines: E85
  up to 2380 FWHP – naturally aspirated
  up to 1820 FWHP – forced air induction


• EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts


• Carbureted engines: GAS
  Up to 3600 FWHP – naturally aspirated
  Up to 2700 FWHP – forced air induction


• Carbureted engines: E85
  Up to 2520 FWHP – naturally aspirated
  Up to 1890 FWHP – forced air induction


• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.


• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.


• Not compatible with pulse modulated systems or fuel pump speed controllers.


• Lighter than the traditional external mount pumps.


• Requires straight 12-VDC to 16-VDC power supply.


• Reduced current draw at higher, EFI pressures.


• Extended service life in methanol and ethanol.


• New integral spur-gear pumping mechanism.


• ORB-12 inlet and ORB-10 outlet ports.
