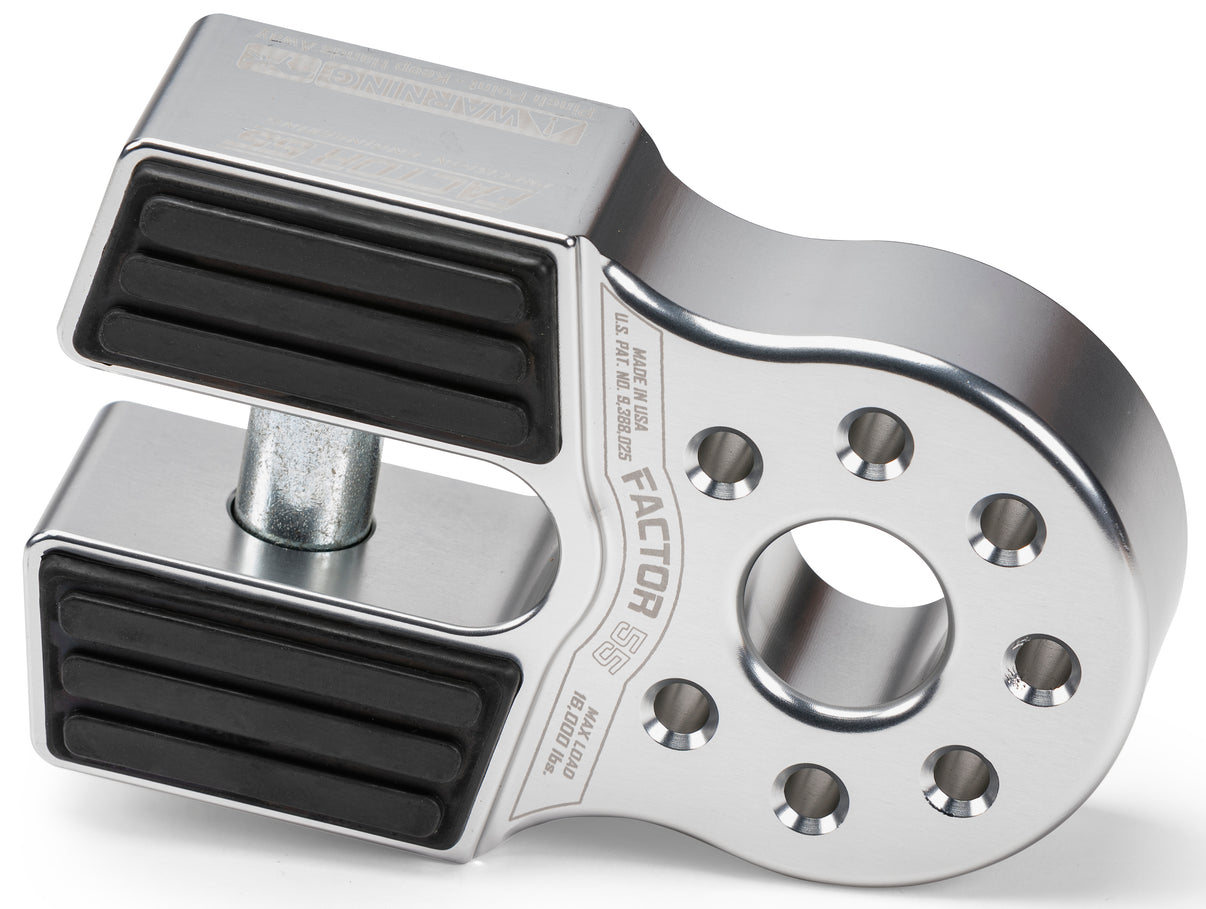

FACTOR 55 FlatLink XTV Winch Shackle - Part Number 00070-05

The FlatLink XTV allows replacement of the conventional winch hook with a safer and stronger shackle/D-Ring. Winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose/tight cycles of a winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The FlatLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches. The cable eye is retained in the FlatLink XTV by a 7/16 inch diameter titanium double shear pin and internal snap ring. It is easily installed in minutes. The EPDM Rubber Guards protects alloy fairleads and is securely attached to the FlatLink XTV with 4 barbed tips. The FlatLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard ? * 5/8 inch shackles. MADE IN THE USA, the FlatLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized/powder coated in 5 different colors. The FlatLink XTV has a max load rating of 8000 pounds and an ultimate failure of 28,000+ pounds.
Upgrade your winching experience with the FACTOR 55 FlatLink XTV Winch Shackle, designed to replace conventional winch hooks with a stronger and safer shackle/D-Ring system. Unlike regular hooks that can damage recovery straps and allow them to escape during use, the FlatLink XTV features a secure screw pin attachment that keeps strap loops in place, ensuring a reliable recovery process. The FlatLink XTV is compatible with both steel cables and synthetic ropes up to 5/16 inches, making it a versatile choice for various winching applications.

Installation is a breeze, taking just minutes to set up. The FlatLink XTV is equipped with a robust 7/16 inch titanium double shear pin and internal snap ring that securely retains the cable eye. The EPDM Rubber Guards protect your fairleads and are firmly attached with four barbed tips. Stowing neatly against roller or Hawse type fairleads, this winch shackle supports standard ? * 5/8 inch shackles. Proudly made in the USA, the FlatLink XTV is constructed from durable 6000 series billet aluminum and 6Al-4V titanium, and is available in five stunning anodized/powder-coated colors, boasting a max load rating of 8000 pounds and an ultimate failure strength of over 28,000 pounds.

Features:
* Replaces conventional winch hooks for enhanced safety and strength
* Secure screw pin attachment prevents strap loops from escaping
* Compatible with steel cables or synthetic ropes up to 5/16 inches
* Easy installation takes just minutes
* Retains cable eye with a 7/16 inch titanium double shear pin
* EPDM Rubber Guards protect alloy fairleads
* Stows neatly against roller or Hawse type fairleads
* Designed for use with standard ? * 5/8 inch shackles
* Made in the USA from 6000 series billet aluminum and 6Al-4V titanium
* Available in five anodized/powder-coated colors
* Max load rating of 8000 pounds with an ultimate failure strength of 28,000+ pounds
